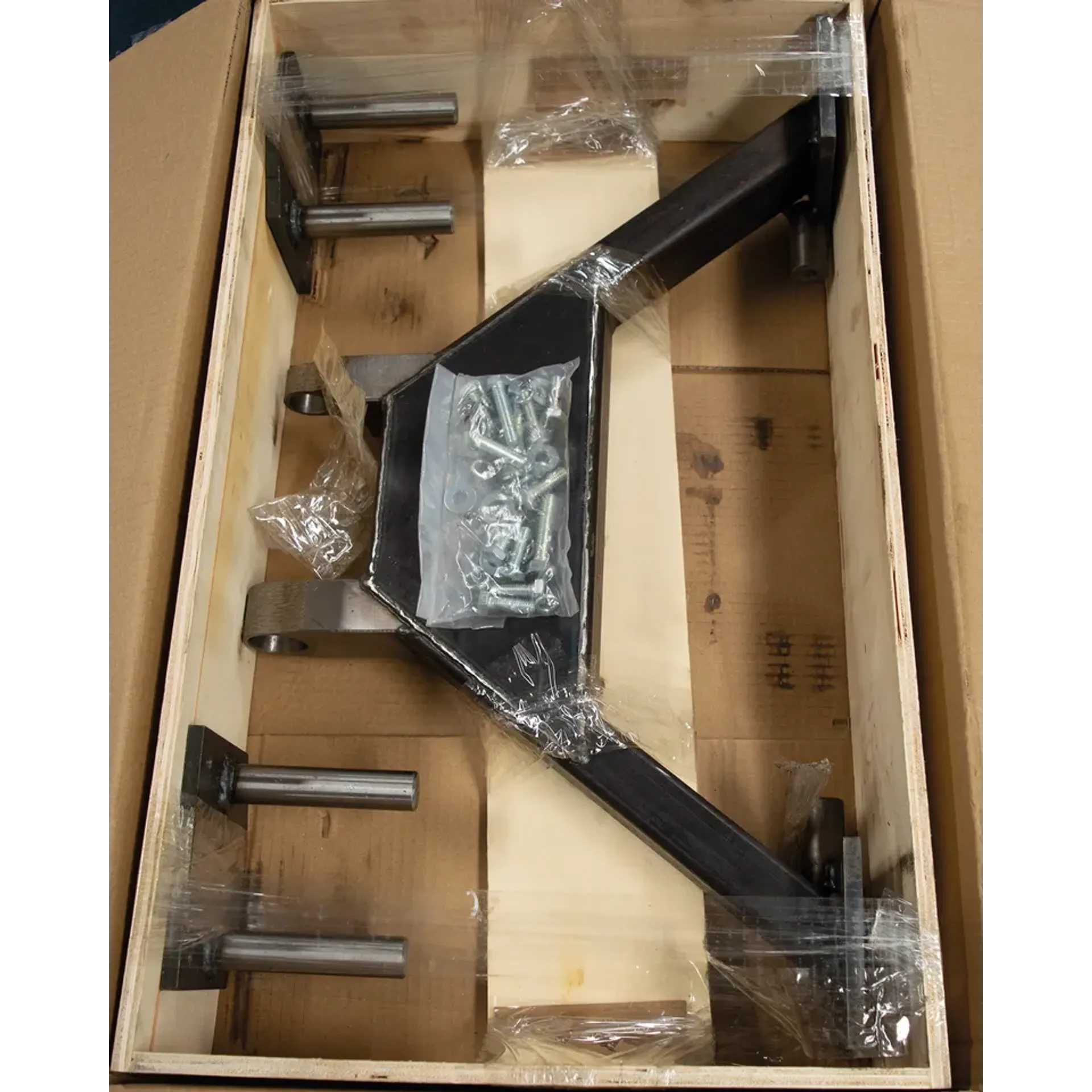

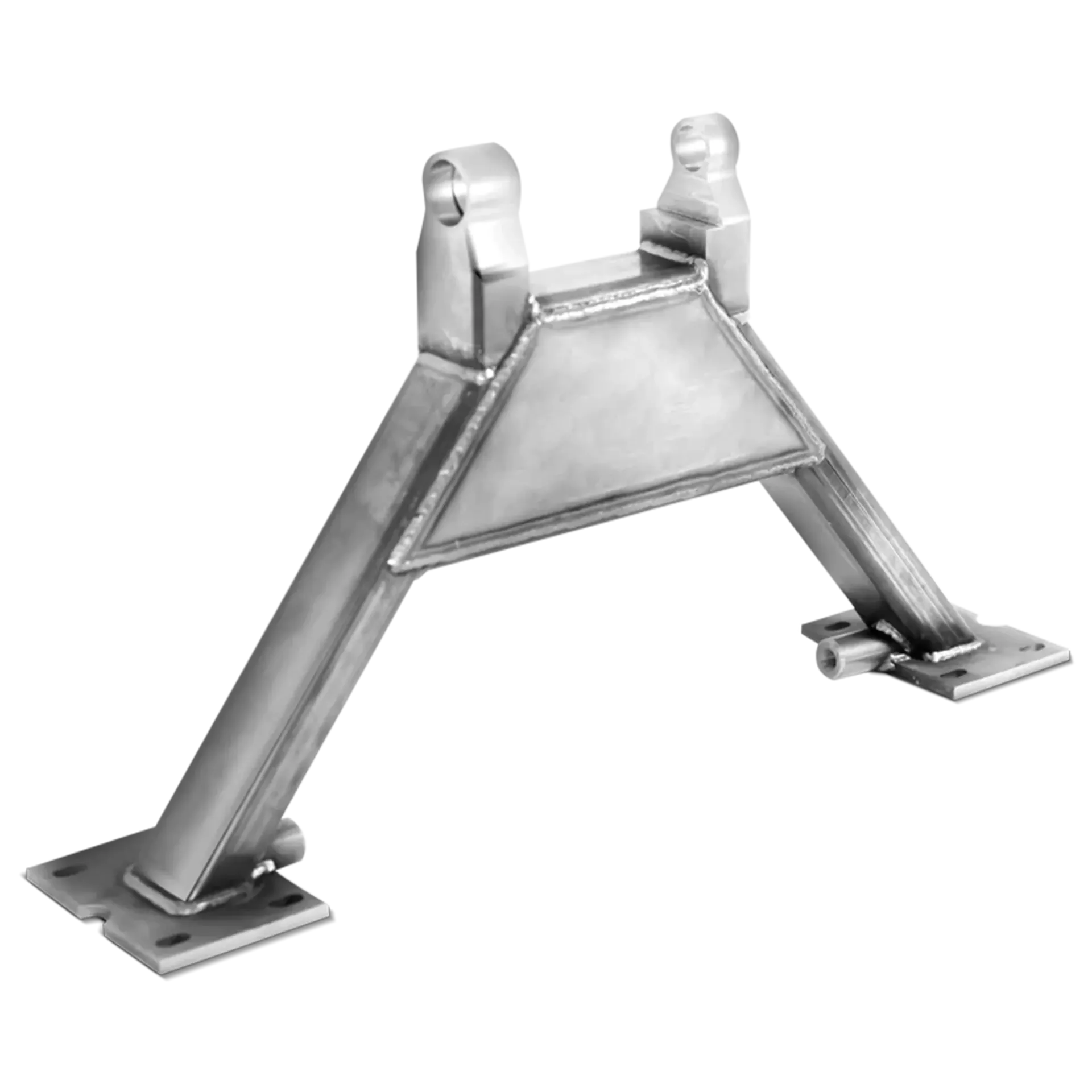

Trike Swingarm XL86-03

Swing arm for 1986-2003 Sportster

Compatible with: Sportster

TRIKE REAR AXLES & TRIKE CONVERSION PARTS

The installation of these conversion kits in Softail or Touring requires no modification to stock mounting points on the frame. As this is a straightforward bolt in conversion you can convert back from trike to two-wheeler at any time in the future. Swing arms are available for Sportster, Touring, 1984-1999 Evolution Softail as well as the 2000 to present Twin Cam Softail. Will also fit most OEM styled aftermarket frames. No offset of the primary and/or transmission is needed, but as trikes in general require more responsive steering as a two-wheeler, the use of 3 degrees raked triple trees is strongly recommended. Trike rear axles can also be used to build a trike with your own frame.

Swing arms feature:
•"No Flex" wide beam styling
•Bolt-on construction
•Uses stock or aftermarket shock absorbers

Rear axles feature:
•Bolt-on construction
•Black finished CNC machined billet aluminum differential housing
•70 tooth 1 1/8" belt pulley or 51 tooth 530 series chain sprocket
•Slip differential
•Chrome brake calipers
•Drilled stainless steel disc brake rotors
•Accepts 4 3/4" (120.6mm) pitch 5-hole wheels as used on many American cars
•Over all width (without wheels) 40 1/2" (103cm)
