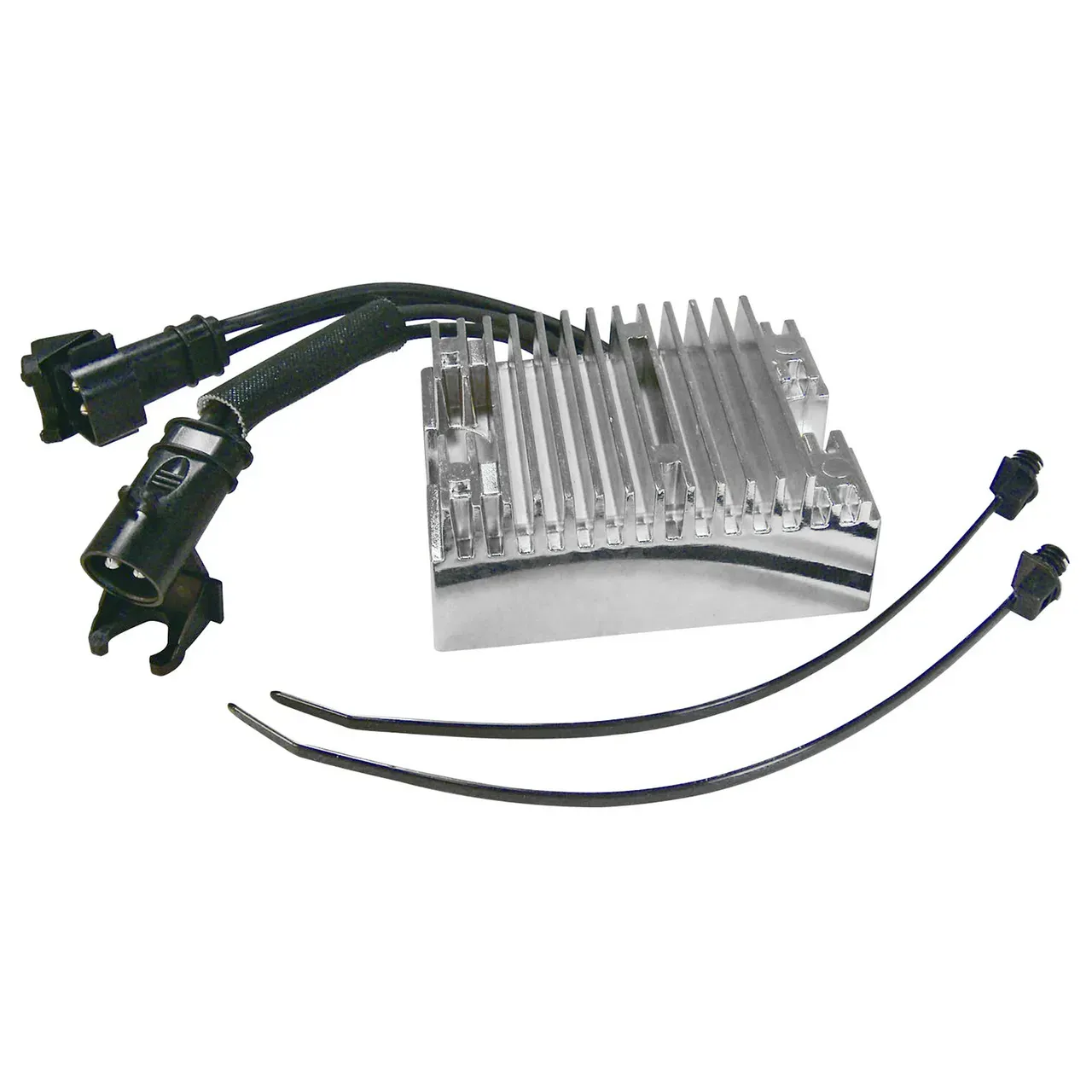

REGULATOR XL07-08 CHROME (F11)
REGULATOR XL07-08 CHROME (F11)
Artikelnummer: Z743279| Adviesprijs: | Nu met tijdelijke korting: € 78,19 |
Lager VANDAAG: 9%
Special order – langere levertijd
Special order – langere levertijd
Bekijk andere producten uit deze categorie *** SPECIAL ORDER *** Neem contact met ons op voor de levertijd en -voorwaarden, voordat je dit onderdeel bestelt. Sommige producten hebben een langere levertijd (soms meer dan 4 weken) en kunnen NIET geretourneerd worden.UITGEBREIDE BESCHRIJVING TAKE A LOOK IN BIKERS BOOK! (05-045) ZOEK VARIATIES / ALTERNATIEVENLeverancier: Zodiac
Uitgebreide beschrijving:
REGULATOR XL07-08 CHROME (F11)
Regulator voor Harley-Davidson Sportster modellen uit 2007 en 2008 met 32Amp dynamo. Dit model heeft een chrome afwerking en is uitgevoerd in OEM-stijl (OEM nummer 74546-07A), met plugtype X. Gefabriceerd door WAI Global.
- Geschikt voor: Sportster 2007 & 2008 met 32Amp alternator
- OEM-nummer: 74546-07A
- Afwerking: Chroom
- Plugtype: X
Deze solid-state spanningsregelaar/rectifier regelt en stabiliseert de stroomtoevoer van de dynamo naar het elektrische systeem van de motorfiets. Zorgt voor een betrouwbare lading van de accu en beschermt elektronische componenten tegen spanningspieken.
© Downtown Motorcycles – Vertaald productoverzicht. Alle rechten voorbehouden.
Original description (click to view)
REGULATOR XL07-08 CHROME (F11)
Fits all Sportster 2007 & 2008 with 32Amp alternator (OEM 74546-07A) (Plug style X), WAI Global, chrome finish
OEM: 74546-07A
Compatible with: Sportster
Plug Styles
Polarizing generators and regulators The following information and instructions are for your use, so your warranty will be in effect. No warranty can be in effect if these instructions are not followed. Whenever any component of a generator charged electrical system is serviced it is necessary to re-polarize the complete system, making sure it has the correct polarity so the system will charge in the right direction. If the system is put into service with the wrong polarity it may result in burned relay points, a dead battery and damage to both the regulator and generator. Instructions: 1. To polarize a generator system with a mechanical regulator, momentarily connect a jumper wire of adequate gauge (a battery cable is ideal) between the “bat” and the “gen” terminal on the regulator after all wires have been properly connected and before starting the motor. 2. To polarize a generator system with electronic regulator/ rectifier. Before mounting the generator of the vehicle, place the generator on a non conducting work surface (like a wooden bench) and connect the positive terminal of a battery to the armature terminal of the generator. Then momentarily “flash” the negative battery terminal to the generator field terminal.
SOLID STATE OEM STYLE RECTIFIERS/REGULATORS
Zodiac offers a wide variety of top quality solid state OEM style rectifiers & regulators for most Harley-Davidson models.
