HP+ oil pump w/camplate ME17-UP oil cld

Fits gear or chain drive oil cooled Milwaukee Eight 2017 to present

Compatible with: Softail | Touring | Trike

FEULING OIL PUMP & CAMPLATE KIT FOR MILWAUKEE EIGHT

These kits combine all the needed components to finish your Milwaukee Eight engines oiling system and increase oil pressure, oil volume, engine oil flow and return oil scavenging.
•Quieter and smoother engine operation
•27% more pressure and scavenge gear volume over stock
•42% more scavenge volume through port sizing, matched passages and holes to the engine case
•68% more oil volume to the crankshaft and connecting rod bearing
•15-25 degree cooler engine temperatures
•15-30 degree cooler oil temperatures
•10-30 more PSI of oil pressure
•Reduces wet sumping, blow by and oily air cleaners
•Test results show 2 HP gain and 2 ft/lbs of torque gain to the rear wheel and as much as 50% reduction of engine sump oil level

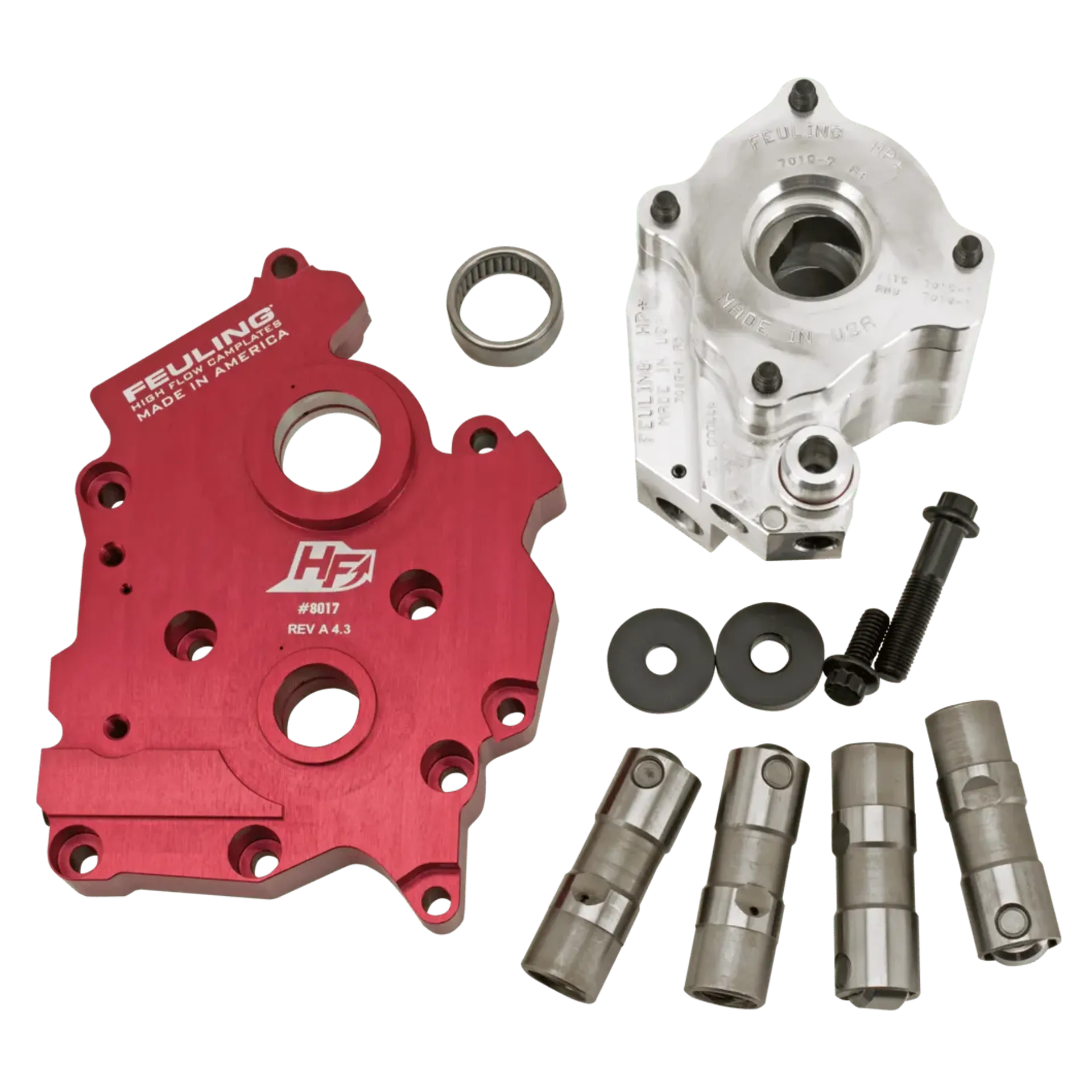

Kits include a billet cam plate made from 7075 aluminum which is 50% harder and stronger than the factory cam plates. These plates increase oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including matching the oil port holes throughout the cam plate to the port holes in the engine case which increases engine oil flow to the lifters, piston cooling jets, crankshaft and rod bearings. The included oil pumps are bench tested, the relief valve is seated and sealed to a minimum of 30 psi with full pop off at 55-60 psi. The increased oil volume from the larger gears and properly sized passages along with the pressure relief valve seat and seal from these oil pumps is essential for proper oiling system function. This oil pump and cam plate combination eliminates common pressure and scavenge issues associated with the factory oiling systems.
Kits also include HP+ Hydraulic roller lifters and cam installation kit, cam bearing, cam/crank bolts and washers, engine and fastener assembly lube.
